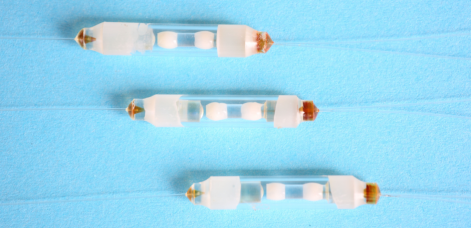

产品描述:
DWDM(Dense Wavelength Division Multiplexing),每一个单器件都满足100G/200G的ITU信道间隔。由于DWDM具有低成本、低功率、小体积等诸多优点,使各大运营商和系统集成商找到了一种低价格、高性能的传输解决方案。
用途: 特性:
l 复用/解复用 l 全光纤构造
l 光纤CATV l 高可靠性
l 光纤测试设备 l 优异的光学性能
l 单纤双向传输
l 单纤系统增容
典型产品性能指标:
Configuration | Unit | 2x1 | |
Type | 100G DWDM | 200G DWDM | |
Center Wavelength | ITU Grid | ITU Grid | |
Pass band | nm | ITU±0.11 | ITU±0.25 |
Ripple | dB | ≤1.00 | ≤0.80 |
Return Loss | dB | ≤0.4 | ≤0.40 |
Express Insertion Loss | dB | ≤0.50 | ≤0.50 |
Non-Adjacent Transmission Isolation | dB | ≥13.0 | ≥13.0 |
PDL | dB | ≤0.10 | ≤0.10 |
Return Loss | dB | ≥50 | ≥50 |
Directivity | dB | ≥50 | ≥50 |
Operating Temperature | °C | -80 | |
Storage Temperature | °C | -125 | |
Fiber Length | m | 1.0±0.10 | |
Fiber Type | SMF-28U or Customized | ||
Fiber Diameter | um | 250/900 | |
Package | mm | 5.5*36 |
*The parameters do not include connector,connector IL is 0.3Db Tested at 23 Deg

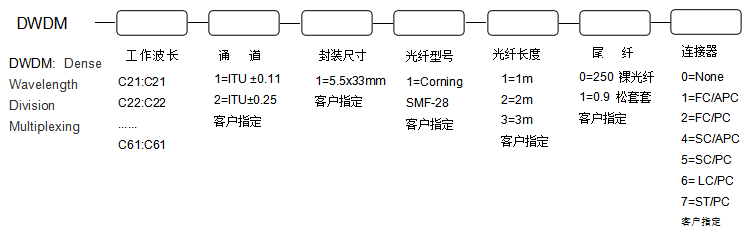

订货信息:
例如:DWDM-S-9815-102-S-1-1-0-A-0-0
