Product description：
The multimode standard optical splitter introduced by optical terrestrial communication is made by using the unique strong melting and pulling cone parallel technology. It is mainly used for the downward distribution of optical power in the transmission fiber, that is, the optical signal in a fiber is distributed to different optical fibers according to a certain proportion of optical power. The product has the advantages of good environmental stability, low insertion loss and polarization related loss. It can be widely used in signal transmission distribution and monitoring of various optical fiber communication networks, and also can be used for the specific needs of optical measuring instruments.
Purpose: Characteristic:
Optical fiber communication system Low insertion loss
Optical fiber testing equipment Low polarization related loss
Optical fiber sensor Good direction
Optical fiber monitoring system High stability and reliability
Fiber amplifier
Product parameters：
Configuration | Unit | Specifications | |
Type | Multi Mode Standard Coupler | ||
Operating Wavelength | nm | 850 or 1310 | |
Operating Bandwidth | nm | ±20 | |
Max Insertion Loss | 50/50 | % | 4.10/4.10 |
45/55 | % | 4.50/3.60 | |
40/60 | % | 5.00/3.10 | |
33/67 | % | 5.70/2.90 | |
30/70 | % | 6.35/2.50 | |
25/75 | % | 7.20/2.20 | |
20/80 | % | 8.25/1.90 | |
15/85 | % | 9.50/1.55 | |
10/90 | % | 11.50/1.30 | |
5/95 | % | 14.50/1.00 | |
3/97 | % | 16.90/0.98 | |
2/98 | % | 18.70/0.95 | |
1/99 | % | 21.7/0.90 | |
Polarization dependent loss（PDL） | dB | ≤0.15 | |
Directional(Dir) | dB | >45 | |
RL | dB | >50 | |
Working Temperature | °C | ’-40~85 | |
Storage Temperature | °C | ’-40~85 | |
Fiber type | OM4(50/125) Multi-Mode Fiber or Others | ||
Pigtail Length | m | 1 | |
Port Configuration | 1x2 or 2x2 | ||
Package Dimensions | mm | PackageA, B, C, D, E, F | |
*For 50/50 devices；
*The above indicators do not include connector loss.

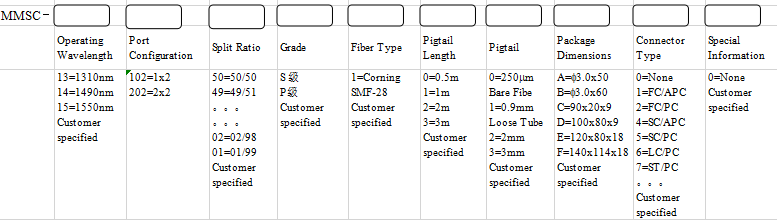

Ordering Information：
Example：MMSC-850-102-50-S-1-1-1-A-5
