Product Description:

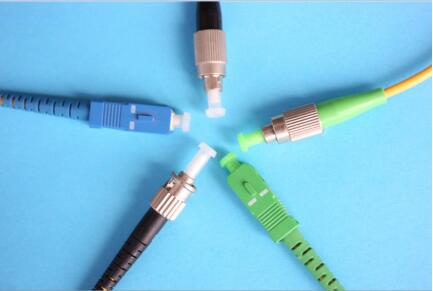

The optical fiber jumper introduced by optical land communication is a device for disassembling (movable) connection between optical fiber and optical fiber. By precisely docking the two end faces of optical fiber, the optical energy output by the transmitting optical fiber is coupled to the receiving optical fiber to the limit. According to the interface type, it can be divided into FC, SC, St, LC, MTRJ, mu, etc.
Characteristic:
Various grinding schemes of PC, UPC and APC
Geometric parameter control of end face
High return loss and low insertion loss
Threaded connection
High reliability and stability
Product parameters：
Configuration | Test conditions | Specifications(dB) | |
optics | IL | 1310nm DFB light source | APC＜0.3 PC<0.2 (Typical value 0.1) |
RL | 1310nm DFB light source | PC＞40，UPC＞50，APC＞60 | |
Environmental performance test | High temperature | +85oC,168 hrs | 0.2 |
Temperature cycle | -40 oC~+75 ℃,21 cycle, 168hrs | 0.2 | |
Damp heat (steady state) | 75 ℃, 95%R.H, 168 hrs | 0.2 | |
Damp heat cycle | -10 ℃～+65 ℃, 95%R.H. , 21 cycle, 168 hrs | 0.2 | |
Mechanical property test(Maximum change of insertion loss) | Vibration | 10 Hz～55Hz, 1.5mm(p-p) 0.1 | 0.1 |
Bend | 0.9kgf, -90°～+90° 100 cycles | 0.1 | |
Reverse | 2.5kgf,10pcs/min,±180°,200pcs | 0.1 | |
Tensile | 90N，10min | 0.1 | |
Drop | High 1.5m, 8 pcs | 0.1 | |
Repeatability | 10 plugged | 0.1 | |
Durability | >500 次 | 0.2 | |
Note: Refer to Telcordia gr-326-core for detailed test conditions
Ordering Information：
Example: FP-FP-1-1-5-0
