Product description：
The 1310 / 1550nm wavelength division multiplexer introduced by optical terrestrial communication is made by using the unique strong melting and pulling cone technology, which is mainly used for the combination and division of two wavelengths in the optical fiber system, that is, the different wavelengths in two optical fibers are combined into one optical fiber or the two different wavelengths transmitted in a single optical fiber are separated into two different optical fibers for transmission. The product can work under various ambient temperature and high power, and can maintain the stability of **** and very small additional loss.
Purpose: Characteristic:
Multiplexing / demultiplexing All fiber structure
Optical CATV High reliability
Optical fiber testing equipment Good optical performance
Single fiber bidirectional transmission
Increase capacity of single fiber system
Product parameters：
Configuration | Unit | Specifications |
Type | Wavelength Division Multiplexing | |
Operating Wavelength | nm | 1310/1550 |
Operating Bandwidth | nm | ±15 |
MaxInsertion Loss | dB | ≤0.20 |
Isolation Loss | dB | ≥17.0 |
Polarization dependent loss（PDL） | dB | ≤0.10 |
Directional(Dir) | dB | >55 |
RL | dB | >55 |
Working Temperature | °C | -125 |
Storage Temperature | °C | -125 |
Fiber type | Corning Single mode SMF-28 | |
Pigtail Length | m | 1 |
Port Configuration | 1x2 or 2x2 | |
Package Dimensions | mm | Package A, B, E, F,H |
*The above indicators do not include connector loss.

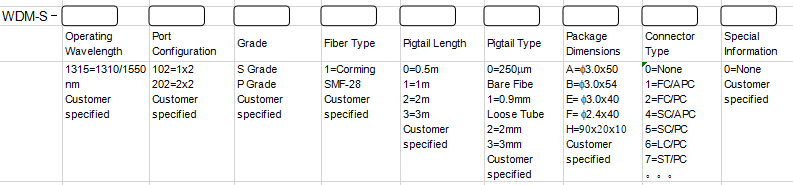

Order information:
Example：WDM-S-1315-102-S-1-1-0-A-0-0
