Product description:
The fiber collimator is composed of fiber pigtail and focusing lens, which can change the transmission light in the fiber into parallel beam (Gaussian beam), or focus and couple the external parallel beam into the fiber.
Purpose: Characteristic:
Fiber delay line, phase modulator Low insertion loss
Optical fiber sensor High return loss
Optical components: isolator / GFF / CWDM / DWDM High stability and reliability

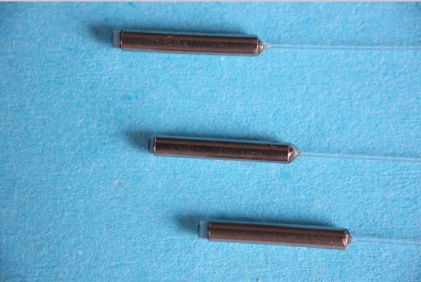

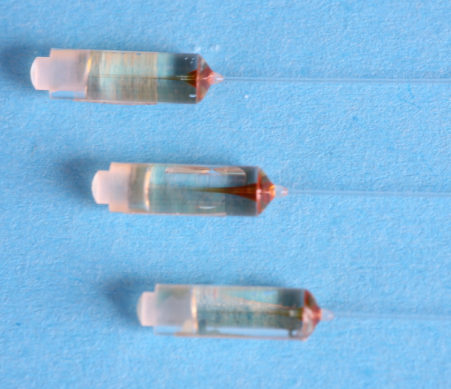

Glass tube collimator Metal tube collimator
Product parameters:
Type | Unit | Specifications |
Center Wavelength | nm | 1310/1550 |
Dperating Bandwidth | nm | ±50 |
Insertion Loss | dB | 0.25 |
Retum Loss | dB | 60 |
Beam Waist | wm | 500 |
Working Temperature | °C | -40 - +85 |
Storage Temperature | °C | -40 - +85 |
Fiber type | Corning Single mode SMF-28, DS Fiber, or flex core | |
Pigtail Length | m | 1±0.1 |
Fiber diameter | mm | 250 |
Package Dimensions | mm | 1.3x8/1.8x10(客户指定) |
*23 degrees tested
Ordering Information:
Example:SFC-1315-1-1-1-1-0
